Causal Calculus: A Gradient-Based Interpretation

I recently read Judea Pearl’s The Book of Why¹, and it clarified many intuitions about causal inference. It also let me to wonder: is there a connection between the do-calculus of causal inference and the familiar gradients of machine learning?

The Goal: Estimating Causal Effects

The central goal of causal inference is to distinguish correlation from causation. We want to estimate the true effect of an intervention, which Pearl denotes with the do() operator. For example, what is the effect on cancer rates, P(Y), if we force a population to smoke, do(X)?

This is different from the observational probability, P(Y|X), which simply tells us the cancer rate among people who already smoke. If a hidden “smoking gene” (U) both encourages smoking and causes cancer, the observed correlation will be misleading.

This is the problem that causal adjustment formulas solve. Let’s consider the two most common methods.

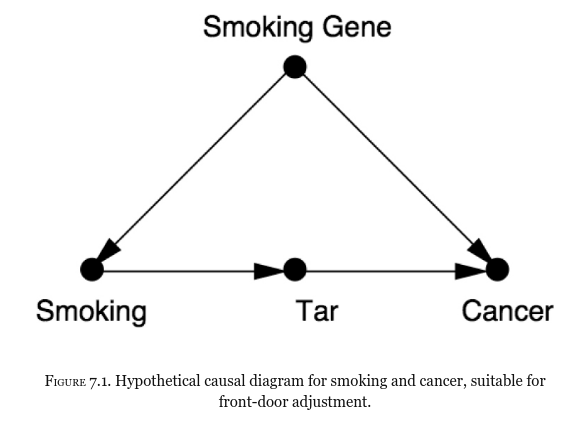

($X$ is Smoking, $Y$ is Cancer, $Z$ is Tar, and $U$ is a confounding Smoking Gene.)

The Back-Door Adjustment

If we can observe and control for all confounding variables—that is, all variables that provide a “back-door” path from X to Y—we can isolate the causal effect. In our diagram, the gene U is a confounder. If we can measure it, we can control for it by averaging its effect across all its values.

The back-door adjustment formula is:

\[P(Y \mid do(X)) = \sum_u P(Y \mid X, U=u) P(U=u) = \mathbb E_{u\sim U}[P(Y \mid X, U=u)]\]

This formula allows us to calculate the causal effect of X on Y by using only observational data, provided we have measured the confounder U.

The Front-Door Adjustment

What if the confounder U is unobservable? Surprisingly, we can still estimate the causal effect if we can find a mediating variable Z that is only influenced by X. In our example, Tar is a perfect mediator. The effect of X on Y is fully transmitted through Z.

The front-door adjustment is a two-step process:

Estimate the causal effect of X on Z. Since there are no back-doors into X from Z, this is just their observed correlation.
Estimate the causal effect of Z on Y. To do this, we must block the back-door path from Z back to Y (i.e., Z ← X ← U → Y) by controlling for X.

This gives us the front-door formula:

$P(Y \mid do(X)) = \sum_z P(Z=z \mid do(X)) \cdot P(Y \mid do(Z=z))$ Which expands to: $P(Y \mid do(X)) = \sum_z P(Z=z \mid X) \sum_x P(Y \mid X=x, Z=z) P(X=x)$

A New Interpretation: Expected Gradients

Here’s the interesting part. Let’s reconsider these formulas through the lens of gradients.

From Correlation to Gradients

While a conditional probability P(Y|X) is a full distribution, if we assume a simple linear relationship, Y = aX + b, the coefficient a represents the strength of the connection. This coefficient is what we calculate with a linear regression, and it can be expressed as:

\[a = \frac{\mathbb E[(X -\mu_X)(Y-\mu_Y)]}{\mathbb E[(X -\mu_X)^2]} = \mathbb E\bigg[\frac{Y-\mu_Y}{X -\mu_X}\bigg]\]

This expression is essentially the expected “rise over run” between the variables. For any function y = f(x), this is the definition of the gradient, ∂y/∂x.

So, under the assumption of local linear relationships, we can reinterpret the causal effect as an expected gradient.

Let’s apply this intuition to the adjustment formulas.

The Back-Door Adjustment as an Expected Gradient

The back-door formula E_u[P(Y|X, U=u)] tells us to calculate the relationship between Y and X at each value u of the confounder and then average. In our new interpretation, this is simply the confounder-averaged expected gradient:

\[\frac{\partial y}{\partial x_{\text{causal}}} = \mathbb E_u \bigg[\frac{\partial y}{\partial x}(u)\bigg]\]

The Front-Door Adjustment as the Chain Rule

The front-door adjustment involves combining the effect of X on Z and the effect of Z on Y. If we represent these effects as gradients, the formula becomes a product of expected gradients, summed over the mediator Z: $\frac{\partial y}{\partial x_{\text{causal}}} = \mathbb E_z \bigg[\frac{\partial y}{\partial z}(z) \cdot \frac{\partial z}{\partial x}(x)\bigg]$ This is exactly the chain rule from calculus, averaged over all possible values of the mediator z. The intuition holds beautifully.

Towards a “Total Causal Effect” Metric

This gradient-based view allows us to propose a measure of causal strength for continuous, non-linear functions.

Desiderata:

If small changes in x consistently cause large changes in y, the measure should be high.
The direction of change shouldn’t matter, only the magnitude.
The measure should be normalized, perhaps between 0 and 1.

A simple starting point is the expected magnitude of the gradient: $c_{x\to y} = \mathbb E \bigg[\parallel \frac{\partial y}{\partial x} \parallel\bigg]$ To normalize this, we can express it as a proportion of the total influence on y. If y is a function of multiple variables x_1, x_2, ..., x_n, we could define the causal contribution of x_i as:

\[c_{x_i \to y} = \frac{\mathbb E \big[\parallel \frac{\partial y}{\partial x_i} \parallel\big]}{\sum_{j=1}^n \mathbb E \big[\parallel \frac{\partial y}{\partial x_j} \parallel\big]}\]

This gives us a bounded measure of “sufficient cause” that accounts for the sensitivity of y to changes in x_i relative to its other causes.

Connection to Modern ML Research

It turns out these ideas are not entirely new, which is exciting! A growing body of research in machine learning uses gradients for causal discovery. Frameworks now exist that treat learning a causal graph as a continuous optimization problem, where gradients are used to find the most likely causal structure from data. ¹ ²

One of the most fascinating applications is in active learning for causal discovery. Methods like Gradient-based Intervention Targeting (GIT) use the gradients of a causal model to decide which real-world experiment would be most informative for uncovering the true causal graph, thereby minimizing costly data collection. ³ ⁴ ⁵ This “Trust Your ∇” approach shows that the connection between gradients and causality is not just an intuition, but a practical tool for scientific discovery.

This is a work in progress, but the initial connection seems powerful. Re-framing causal calculus in the language of gradients provides a new way to think about these problems and connects them directly to the tools we use every day in machine learning.

References

Pearl, J., & Mackenzie, D. (2018). The Book of Why: The New Science of Cause and Effect. Basic Books. ↩ ↩²
Zheng, X., et al. (2020). “Learning linear non-Gaussian acyclic models in the presence of arbitrary unobserved confounding”. arXiv preprint arXiv:2007.01754. ↩
Brouillard, P., et al. (2020). “Differentiable causal discovery from interventional data”. arXiv preprint arXiv:2007.01754. ↩
Lachapelle, S., et al. (2020). “Gradient-Based Neural DAG Learning”. International Conference on Learning Representations. ↩
Khemakhem, I., et al. (2022). “Trust Your ∇: Gradient-based Intervention Targeting for Causal Discovery”. arXiv preprint arXiv:2211.13715. ↩
